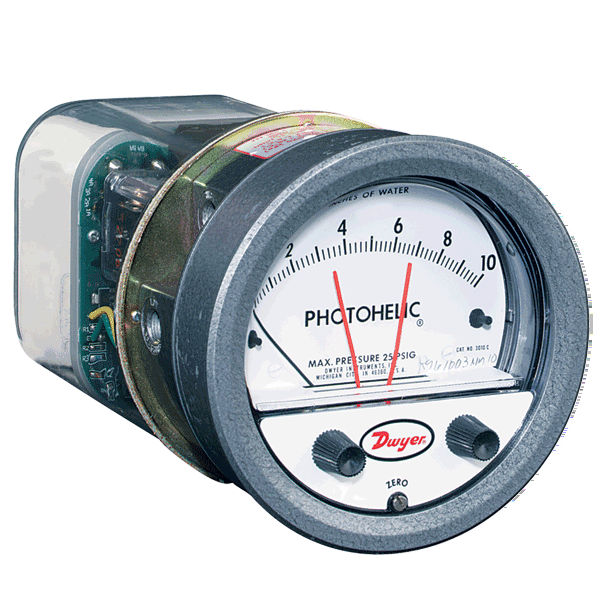

Dwyer A3300-30CM-240VAC – Đồng hồ công tắc áp suất chênh lệch Photohelic® Series A3000

Xuất xứ: Dwyer

Chiết khấu liên hệ: sales@getvn.vn hoặc 0943530440

Mã hàng: A3300-30CM-240VAC

Đánh giá sản phẩm

Liên Hệ

GAGE SPECIFICATIONS
Service:: Air and non-combustible, compatible gases.
Wetted Materials:: Consult Factory.
Accuracy:: ±2% of FS at 70°F (21.1°C). ±3% on -0 and ±4% on -00 models.
Pressure Limits:: -20" Hg. to 25 psig (-0.677 to 1.72 bar). MP option; 35 psig (2.41 bar), HP option; 80 psig (5.52 bar).
Temperature Limits:: 20 to 120°F. (-6.67 to 48.9°C). -20 to 120°F (-28 to 48.9°C) with low temperature option.
Process Connections:: 1/8" female NPT.
Size:: 4" (101.6 mm) dial face, 5" (127 mm) O.D. x 8-1/4" (209.55 mm).
Weight:: 4 lb (1.81 kg).
: SWITCH SPECIFICATIONS
Switch Type:: Each setpoint has 2 Form C relays (DPDT).
Repeatability:: ±1% of FS.
Electrical Rating:: 10 A @ 28 VDC, 10 A @ 120, 240 VAC.
Electrical Connections:: Screw terminals. Use 167°F (75°C) copper conductors only.
Power Requirements:: 120 VAC, 50/60 Hz; 240 VAC & 24 VAC power optional.
Mounting Orientation:: Diaphragm in vertical position. Consult factory for other position orientations.
Set Point Adjustment:: Adjustable knobs on face.
Agency Approvals:: CE, CSA, UL.

GAGE SPECIFICATIONS
Service:: Air and non-combustible, compatible gases.
Wetted Materials:: Consult Factory.
Accuracy:: ±2% of FS at 70°F (21.1°C). ±3% on -0 and ±4% on -00 models.
Pressure Limits:: -20" Hg. to 25 psig (-0.677 to 1.72 bar). MP option; 35 psig (2.41 bar), HP option; 80 psig (5.52 bar).
Temperature Limits:: 20 to 120°F. (-6.67 to 48.9°C). -20 to 120°F (-28 to 48.9°C) with low temperature option.
Process Connections:: 1/8" female NPT.
Size:: 4" (101.6 mm) dial face, 5" (127 mm) O.D. x 8-1/4" (209.55 mm).
Weight:: 4 lb (1.81 kg).
: SWITCH SPECIFICATIONS
Switch Type:: Each setpoint has 2 Form C relays (DPDT).
Repeatability:: ±1% of FS.
Electrical Rating:: 10 A @ 28 VDC, 10 A @ 120, 240 VAC.
Electrical Connections:: Screw terminals. Use 167°F (75°C) copper conductors only.
Power Requirements:: 120 VAC, 50/60 Hz; 240 VAC & 24 VAC power optional.
Mounting Orientation:: Diaphragm in vertical position. Consult factory for other position orientations.
Set Point Adjustment:: Adjustable knobs on face.
Agency Approvals:: CE, CSA, UL.
