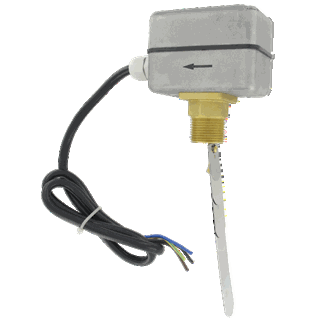

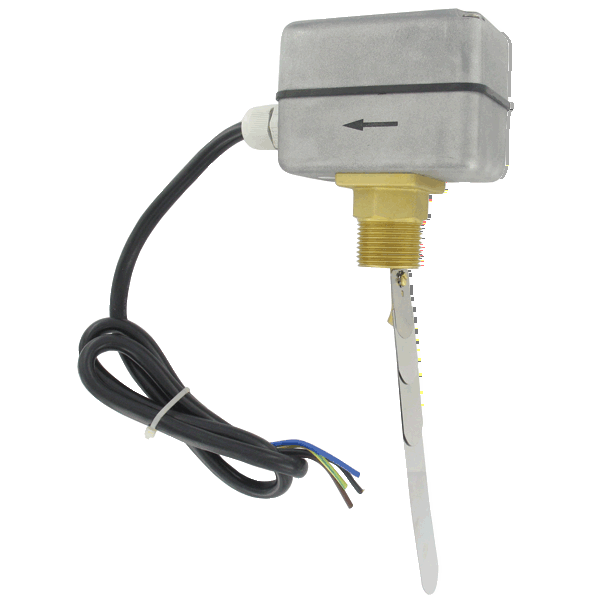

Công tắc dòng chảy Dwyer Series FS-2

Xuất xứ: Dwyer

Chiết khấu liên hệ: sales@getvn.vn hoặc 0943530440

Mã hàng: Series FS-2

Đánh giá sản phẩm

Liên Hệ

Service:: Compatible liquids.
Wetted Materials:: Bellow: Tin-bronze; Vane: SS; Body: Forged brass.
Temperature Limits:: 230°F (110°C).
Pressure Limits:: 145 psig (10 bar).
Enclosure Rating:: NEMA 4 (IP64).
Switch Type:: SPDT snap switch.
Electrical Rating:: 10 A res, 3 A ind @ 250 VAC.
Electrical Connection:: Cable gland with attached wire leads or optional conduit connection.
Process Connection:: 1" male NPT or BSPT.
Mounting Orientation:: Switch must be installed vertically on horizontal pipe runs.
Set Point Adjustment:: Four vane combinations and an adjustment screw.
Enclosure:: Die-cast aluminum alloy.
Weight:: 28.22 oz (0.8 kg).
Agency Approvals:: CE.

Service:: Compatible liquids.
Wetted Materials:: Bellow: Tin-bronze; Vane: SS; Body: Forged brass.
Temperature Limits:: 230°F (110°C).
Pressure Limits:: 145 psig (10 bar).
Enclosure Rating:: NEMA 4 (IP64).
Switch Type:: SPDT snap switch.
Electrical Rating:: 10 A res, 3 A ind @ 250 VAC.
Electrical Connection:: Cable gland with attached wire leads or optional conduit connection.
Process Connection:: 1" male NPT or BSPT.
Mounting Orientation:: Switch must be installed vertically on horizontal pipe runs.
Set Point Adjustment:: Four vane combinations and an adjustment screw.
Enclosure:: Die-cast aluminum alloy.
Weight:: 28.22 oz (0.8 kg).
Agency Approvals:: CE.
