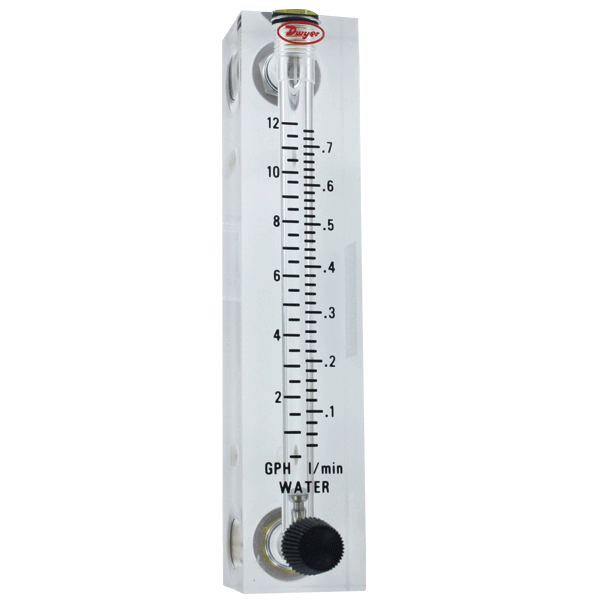

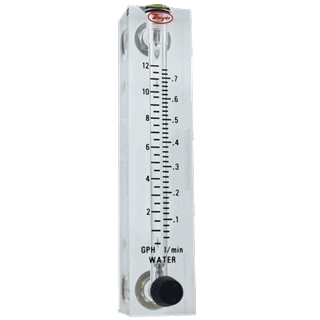

Lưu lượng kế acrylic (Acrylic Flowmeter)-Dwyer Series VF Visi-Float®

Mã hàng:Series VF

Xuất xứ: Dwyer

Chiết khấu liên hệ: sales@getvn.vn hoặc 0943530440

Mã hàng: Series VF

Đánh giá sản phẩm

Liên Hệ

Service:: Compatible gases and liquids.
Wetted Materials:: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available); Metal parts: Nickel plated brass standard, SS optional; Float: SS, black glass, aluminum, K monel depending on range.
Temperature & Pressure Limits:: Without Valve: 100 psig (6.9 bar) @ 150°F (65°C); 150 psig (10 bar) @ 100°F (38°C); With Valve: 100 psig (6.9 bar) @ 120°F (48°C).
Accuracy:: VFA = 5% of FS; VFB = 3% of FS.
Process Connection:: 1/8" female NPT. VFB ranges 85 and 86 have 1/4" NPT back connections or 3/8" NPT end connections. These ranges not available with brass valves.
Scale Length:: VFA 2" typical length; VFB 4" typical length.
Mounting Orientation:: Mount in vertical position.
Weight:: VFA: 4.0 to 4.8 oz (.11 to .14 kg); VFB: 7.2 to 8.8 oz (.20 to .25 kg).
Agency Approvals:: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).

Service:: Compatible gases and liquids.
Wetted Materials:: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available); Metal parts: Nickel plated brass standard, SS optional; Float: SS, black glass, aluminum, K monel depending on range.
Temperature & Pressure Limits:: Without Valve: 100 psig (6.9 bar) @ 150°F (65°C); 150 psig (10 bar) @ 100°F (38°C); With Valve: 100 psig (6.9 bar) @ 120°F (48°C).
Accuracy:: VFA = 5% of FS; VFB = 3% of FS.
Process Connection:: 1/8" female NPT. VFB ranges 85 and 86 have 1/4" NPT back connections or 3/8" NPT end connections. These ranges not available with brass valves.
Scale Length:: VFA 2" typical length; VFB 4" typical length.
Mounting Orientation:: Mount in vertical position.
Weight:: VFA: 4.0 to 4.8 oz (.11 to .14 kg); VFB: 7.2 to 8.8 oz (.20 to .25 kg).
Agency Approvals:: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
