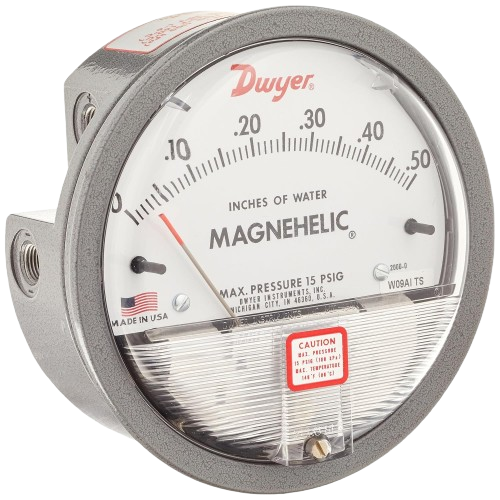

Đồng hồ đo chênh áp Dwyer Series 2000 Magnehelic® Differential Pressure Gage

Mã hàng: 2000

Xuất xứ: Dwyer

Chiết khấu liên hệ: sales@getvn.vn hoặc 0943530440

Mã hàng: 2000

Đánh giá sản phẩm

Liên Hệ

Service:: Air and non-combustible, compatible gases (natural gas option available). Note: May be used with hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.
Wetted Materials:: Consult factory.
Housing:: Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 hour salt spray corrosion test.
Accuracy:: ±2% (-HA model ±1) of FS (±3% (-HA ±1.5%) on -0, -100PA, -125PA, -10MM and ±4% (-HA ±2%) on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C).
Pressure Limits:: -20 in Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option: 35 psig (2.41 bar), HP option: 80 psig (5.52 bar).
Enclosure Rating:: IP67.
Overpressure:: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only. See Overpressure Protection note on Catalog page.
Temperature Limits:: 20 to 140°F (-6.67 to 60°C). -20°F (-28°C) with low temperature option.
Size:: 4" (101.6 mm) diameter dial face.
Mounting Orientation:: Diaphragm in vertical position. Consult factory for other position orientations.
Process Connections:: 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back.
Weight:: 1 lb 2 oz (510 g); MP & HP 2 lb 2 oz (963 g).
Standard Accessories:: Two 1/8" NPT plugs for duplicate pressure taps, two 1/8" pipe thread to rubber tubing adapters and three flush mounting adapterswith screws. (Mounting and snap ring retainer substituted for three adapters in MP & HP gage accessories.)
