Cảm biến áp suất DwyerOmega PX119 OEM Style Compact Pressure Transmitter

Mã hàng: PX119

Xuất xứ: Dwyeromega

Chiết khấu liên hệ: sales@getvn.vn hoặc 0943530440

Mã hàng: PX119

Đánh giá sản phẩm

Liên Hệ

Product Overview

Accuracy± 0.5 %
Accuracy Detail0.50% BFSL Accuracy
Compensated Temperature, Max85 °C
Compensated Temperature, Min0 °C
Enclosure Material304 Stainless Steel
Enclosure RatingsIP65
Materials, Wetted304 Stainless Steel, Alumina, Buna-N (NBR)
Operating Temperature, Max135 °C
Operating Temperature, Min-40 °C
Output Wiring (Pin 1)Supply +
Output Wiring (Pin 2)Supply -
Process Connection TypeNPT Male
ProtectionOvervoltage, short circuit, reverse polarity
Response Time1 ms
Series IDPX119
Stability<0.3% FS
Supply Voltage8 to 30 Vdc
Weight70 g

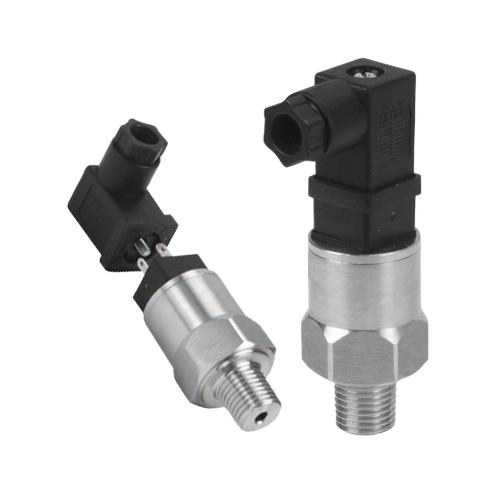

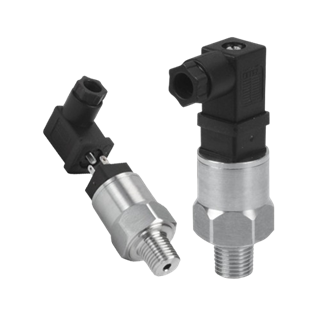

The PX119 series compact pressure transmitters offer ±0.5% accuracy and a fast 1 ms response time. Featuring a durable stainless steel housing with IP65 rating and NPT male process connection, they deliver reliable 4-20 mA outputs ideal for OEM applications. Easily configurable with expanded options, these lightweight (70 g) transmitters provide cost-effective, corrosion-resistant performance in harsh industrial environments.

Pressure Without the Pain

Ideally suited for material handling, industrial and mobile equipment applications where a small, yet rugged SS body size is desired at a reasonable price point. The body is machined from a single piece of stainless steel to provide added protection for the internal electronics as well as prevent corrosion from most applications. A piezoresistive ceramic sensor along with ASIC signal conditioning provides an excellent thermally compensated output.

Applications:

Monitor air brake pressure
Monitor pressure/height in vehicle suspension
Regulate pneumatic door operation
Monitor excessive load
Monitor lift operation
Monitor compact pressure
