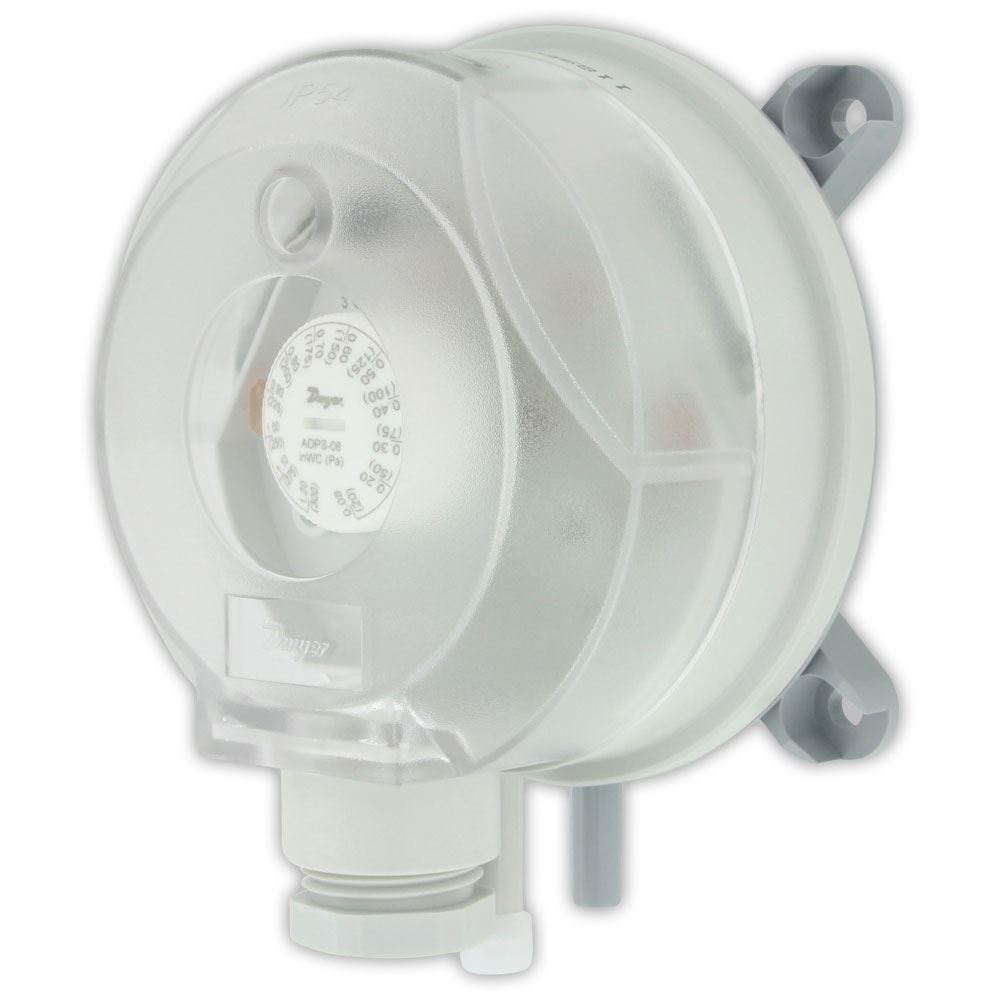

Cảm biến chênh áp suất gió ADPS-05-2-N Dwyer

Wetted Materials:

ADPS: Diaphragm material: Silicone; Housing material: POM; Switch body: PA 6.6; Cover: Polystyrene;
EDPS: Diaphragm material: Silicone; Housing material: Switch body: PA 6.6; Cover: Polystyrene; Materials UL 94 V-0 rated.

Temperature Limits:

Process and ambient temperature from -4 to 185°F (-20 to 85°C).

Storage:

-40 to 185°F (-40 to 85°C).

Pressure Limits:

Max. Operating Pressure: 40" w.c. (10 kPa) for all pressure ranges.

Switch Type:

Single-pole double-throw (SPDT).

Electrical Rating:

Max. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz; Max. switching rate: 6 cycles/min.

Electrical Connections:

Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2" NPT connection.

Process Connections:

5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing.

Enclosure Rating:

NEMA 3 (IP54).

Mounting Orientation:

Vertically, with pressure connections pointing downwards.

Mechanical Working Life:

Over 10⁶ switching operations.

Weight:

4.4 oz (125 g).

Compliance:

CE, ETL approved to UL508 and CSA C22.2#14 (EDPS only).
