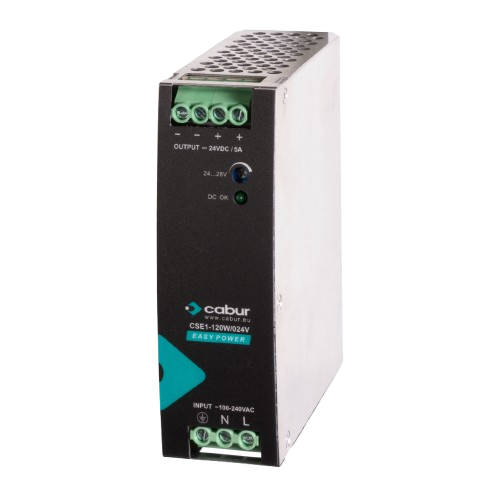

| Series |
EASY POWER LINE |
|---|
| Code |
XCSE1120W024VAA |
|---|
| Type |
CSE1-120W/024V/AA |
|---|
| HS code |
85044083 |
|---|
| INPUT TECHNICAL DATA |
|
|---|
| Input rated voltage |
120–230 Vac |
|---|
| Input voltage AC |
90…264 Vac |
|---|
| Input voltage DC |
127…370 Vdc |
|---|
| Frequency |
47…63 Hz |
|---|
| Current consumption |
2.8 A (115 Vac) / 1.7 A (230 Vac) |
|---|
| Inrush peak current |
25 A (115 Vac) / 35 A (230 Vac) |
|---|
| Power factor |
>0.54 (115 Vac) / >0.43 (230 Vac) |
|---|
| Internal protection fuse |
T 5 A |
|---|
| External protection on AC line |
MCB: C-5 / Fuse: T 5 A |
|---|
| OUTPUT TECHNICAL DATA |
|
|---|
| Output voltage range |
24 Vdc |
|---|
| Output adjustable range |
24…28 Vdc |
|---|
| Continuous current |
5.0 A |
|---|
| Overload limiting |
6.5 A |
|---|
| Short circuit peak current |
30 A for 100 ms |
|---|
| Ripple @ nominal ratings |
120 mVpp |
|---|
| Hold up time |
10ms (115 Vac) / 16 ms (230 Vac) |
|---|
| Status indication |
LED "DC OK" |
|---|
| Alarm contact |
— |
|---|
| Parallel connection |
— |
|---|
| Redundant parallel connection |
possible with external ORing diode |
|---|
| GENERAL TECHNICAL DATA |
|
|---|
| Efficiency |
87% (115 Vac) / 88% (230 Vac) |
|---|
| Dissipated power |
18.77 W (115 Vac) / 14.02 W (230 Vac) |
|---|
| Operating temperature range |
-20°C…+70°C (derating -3 W/°C >50°C) |
|---|
| Input / output isolation |
3 kVac / 60 s |
|---|
| Input / ground isolation |
2 kVac / 60 s |
|---|
| Output / ground isolation |
0.5 kVac / 60 s |
|---|
| Safety Standard |
EN 62368-1, UL508 |
|---|
| EMC Standard |
EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6 |
|---|
| Overvoltage category / pollution degree |
III / 2 |
|---|
| Protection degree |
IP 20 |
|---|
| Connection terminal |
4 mm² / 4 mm² |
|---|
| Housing material |
aluminium, steel |
|---|
| Dimensions (LxHxD) |
40 x 125 x 113.5 mm |
|---|
| Approximate weight |
0.55 Kg |
|---|
| Mounting information |
vertical on a rail, distance from adjacent components: 40 mm top and bottom, 10 mm left and right |
|---|
| ACCESSORIES |
|
|---|
| Mounting rail (IEC60715/TH35-7.5) |
PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB |
|---|
| Mounting rail (IEC60715/TH35-15) |
PR/3/PP, PR/3/PP/ZB, PR/3/PA, PR/3/PA/ZB |
|---|
| APPROVALS AND MARKINGS |
|
|---|
