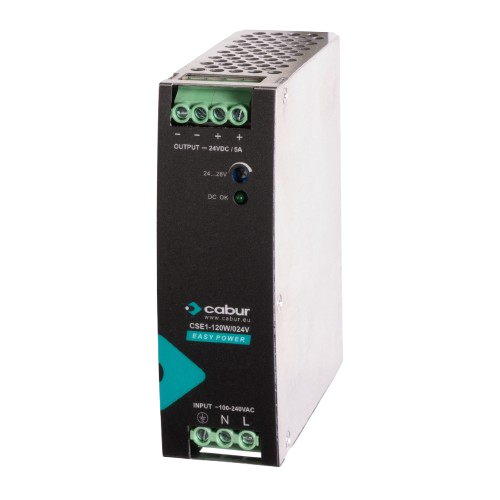

EASY POWER LINE |
|---|
| Code |
XCSE1060W024VAA |
|---|
| Type |
CSE1-060W/024V/AA |
|---|
| HS code |
85044083 |
|---|
| INPUT TECHNICAL DATA |
|
|---|
| Input rated voltage |
120–230 Vac |
|---|
| Input voltage AC |
90…264 Vac |
|---|
| Input voltage DC |
127…370 Vdc |
|---|
| Frequency |
47…63 Hz |
|---|
| Current consumption |
1.6 A (115 Vac) / 0.9 A (230 Vac) |
|---|
| Inrush peak current |
30 A (115 Vac) / 60 A (230 Vac) |
|---|
| Power factor |
>0.5 (115 Vac) / >0.4 (230 Vac) |
|---|
| Internal protection fuse |
T 3.15 A |
|---|
| External protection on AC line |
MCB: C-3.15 A / Fuse: T 3.15 A |
|---|
| OUTPUT TECHNICAL DATA |
|
|---|
| Output voltage range |
24 Vdc |
|---|
| Output adjustable range |
24…28 Vdc |
|---|
| Continuous current |
2.5 A |
|---|
| Overload limiting |
4.0 A |
|---|
| Short circuit peak current |
20 A for 100 ms |
|---|
| Ripple @ nominal ratings |
150 mVpp |
|---|
| Hold up time |
20 ms (115 Vac) / 50 ms (230 Vac) |
|---|
| Status indication |
LED "DC OK" |
|---|
| Alarm contact |
dry contact, max. 1 A |
|---|
| Parallel connection |
— |
|---|
| Redundant parallel connection |
possible with external ORing diode |
|---|
| GENERAL TECHNICAL DATA |
|
|---|
| Efficiency |
86% (115 Vac) / 88% (230 Vac) |
|---|
| Dissipated power |
10 W (115 Vac) / 8 W (230 Vac) |
|---|
| Operating temperature range |
-20°C…+70°C (derating -1,6 W/°C >55°C) |
|---|
| Input / output isolation |
3 kVac / 60 s |
|---|
| Input / ground isolation |
2 kVac / 60 s |
|---|
| Output / ground isolation |
0.5 kVac / 60 s |
|---|
| Safety Standard |
EN 62368-1, UL508 |
|---|
| EMC Standard |
EN 55032, EN 55035, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8 |
|---|
| Overvoltage category / pollution degree |
III / 2 |
|---|
| Protection degree |
IP 20 |
|---|
| Connection terminal |
1.5 mm² / 1.5 mm² |
|---|
| Housing material |
UL94V-0 plastic material |
|---|
| Dimensions (LxHxD) |
40x92x100 mm |
|---|
| Approximate weight |
0.28 Kg |
|---|
| Mounting information |
vertical on a rail, 10 mm from adjacent components |
|---|
| ACCESSORIES |
|
|---|
| Mounting rail (IEC60715/TH35-7.5) |
PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB |
|---|
| Mounting rail (IEC60715/TH35-15) |
PR/3/PP, PR/3/PP/ZB, PR/3/PA, PR/3/PA/ZB |
|---|
