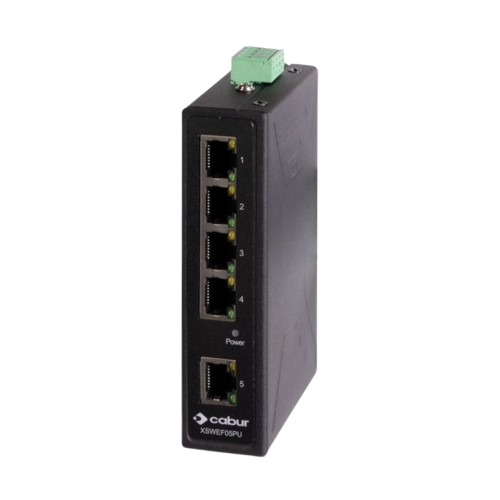

Bộ chuyển mạch 5 cổng RJ45 Ethernet công nghiệp Cabur SWE-F-05PU 10/100Mbps

Xuất xứ: Cabur

Chiết khấu liên hệ: sales@getvn.vn hoặc 0943530440

Mã hàng: XSWEF05PU

Liên Hệ

Series	SWE-F
Code	XSWEF05PU
Type	SWE-F-05PU
HS code	85176200
Version	5 – RJ45 unmanaged
Interface
Number and type of interface	5 RJ45 ports
Connection method	Auto negotiation and auto crossing
Transmission speed	10/100 Mbps
MAC table size	1 K
Status indication	Power, Link/Speed, Link /Activity
GENERAL TECHNICAL DATA
Power supply voltage	5…58 Vdc
Current consumption	< 300 mA
Operating temperature range	-40…+60°C
Ambient temperature range	-40…+85°C
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Safety Standard	EN 62368-1
EMC Standard	EN/IEC 61000-3-2; EN61000-3-3
Overvoltage category /pollution degree	I / 2
Protection degree	IP20
Connection type	1.5 mm² (screw)
Housing material	metallic
Dimensions (LxHxD)	30×118×80 mm
Approximate weight	406 g
Mounting information	on a rail, side by side
APPROVALS AND MARKINGS
ACCESSORIES
Mounting rail (IEC60715/TH35-7.5)	PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB
Mounting rail (IEC60715/TH35-15)	PR/3/PP, PR/3/PP/ZB, PR/3/PA, PR/3/PA/ZB

Series	SWE-F
Code	XSWEF05PU
Type	SWE-F-05PU
HS code	85176200
Version	5 – RJ45 unmanaged
Interface
Number and type of interface	5 RJ45 ports
Connection method	Auto negotiation and auto crossing
Transmission speed	10/100 Mbps
MAC table size	1 K
Status indication	Power, Link/Speed, Link /Activity
GENERAL TECHNICAL DATA
Power supply voltage	5…58 Vdc
Current consumption	< 300 mA
Operating temperature range	-40…+60°C
Ambient temperature range	-40…+85°C
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Safety Standard	EN 62368-1
EMC Standard	EN/IEC 61000-3-2; EN61000-3-3
Overvoltage category /pollution degree	I / 2
Protection degree	IP20
Connection type	1.5 mm² (screw)
Housing material	metallic
Dimensions (LxHxD)	30×118×80 mm
Approximate weight	406 g
Mounting information	on a rail, side by side
APPROVALS AND MARKINGS
ACCESSORIES
Mounting rail (IEC60715/TH35-7.5)	PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB
Mounting rail (IEC60715/TH35-15)	PR/3/PP, PR/3/PP/ZB, PR/3/PA, PR/3/PA/ZB
